$799.99
#CRLBF9870
quantity:

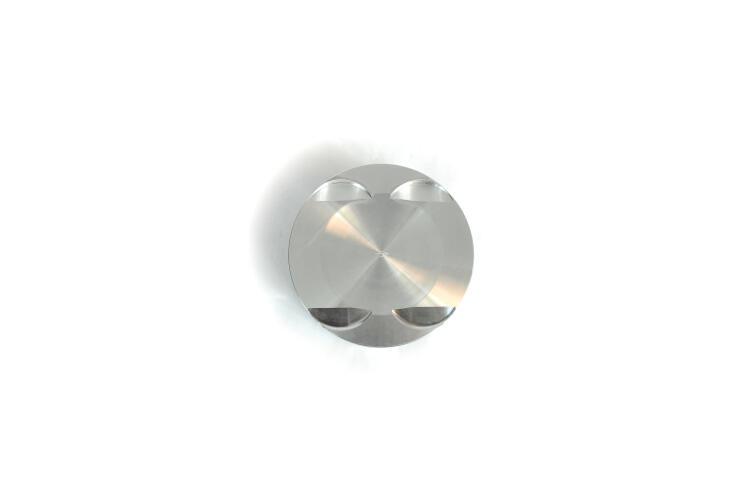

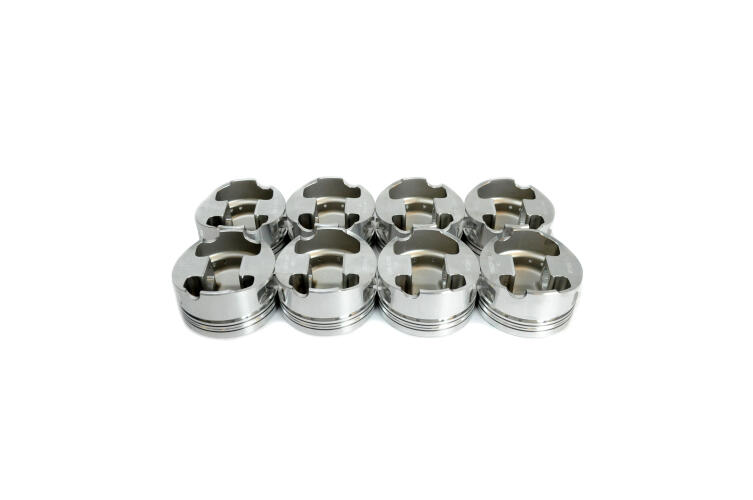

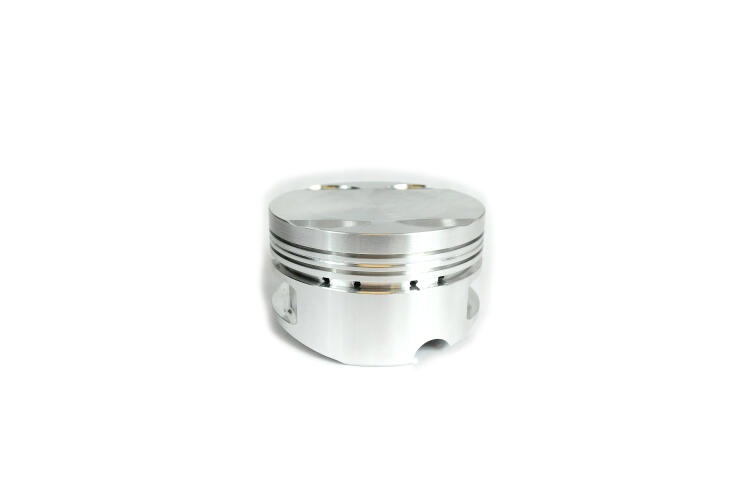

These forged pistons offer our latest advances in design and features. Based on years of testing and research along with continued refinement of the design we feel we have one of the finest modular pistons on the market. They are a forged 2618 material and utilize a custom forging and a thicker crown and skirt for increased power capacity and Improved ring land design for better durability.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

Carrillo Piston Features:

  • Double Pin Oilers (opposed to single pin oilers), in conjunction with our annular reservoir, can add twice the amount of oil fromthe cylinder wall to the wristpin bore. This is a standard option on any piston that receives forced pin oiling.
  • Lateral gas ports are horizontal slots in the top of the top ring groove and they provide a passage for combustion pressure to get behind and above the top ring, increasing ring seal with reduced radial
    rings. Lateral gasports are often used over the vertical option when carbon build up (which could clog vertical gasports) may be an issue.
  • Vertical holes from the deck of the piston to the back of the top ring groove which allow combustion pressure to directly enter the top ring groove area for maximum ring seal. When not under load, the ring has
    normal tension for reduced friction.These are most commonly used for drag race applications.
  • Broaches are horizontal slots in the pin bore designed to allow oil to enter between the wristpin and pinbore. Broaches are also used to accommodate the wristpin shape under compression, as it can be come somewhat oval and needs room in order to alleviate galling.

    • 2011-2014 Ford F-150 FX2 5.0 Liter Naturally Aspirated
    • 2011-2014 Ford F-150 FX4 5.0 Liter Naturally Aspirated
    • 2011-2017 Ford F-150 King Ranch 5.0 Liter Naturally Aspirated
    • 2011-2017 Ford F-150 Lariat 5.0 Liter Naturally Aspirated
    • 2011-2017 Ford F-150 Platinum 5.0 Liter Naturally Aspirated
    • 2016-2017 Ford F-150 SSV 5.0 Liter Naturally Aspirated
    • 2011-2014 Ford F-150 STX 5.0 Liter Naturally Aspirated
    • 2011-2017 Ford F-150 XL 5.0 Liter Naturally Aspirated
    • 2011-2017 Ford F-150 XLT 5.0 Liter Naturally Aspirated
    • 2012-2013 Ford Mustang Boss 302 5.0 Liter Naturally Aspirated
    • 2011-2017 Ford Mustang GT 5.0 Liter Naturally Aspirated
    • 2015 Ford Mustang GT 50 Years Limited Edition 5.0 Liter Naturally Aspirated
    • 2015-2017 Ford Mustang GT Premium 5.0 Liter Naturally Aspirated
